Gorman Rupp

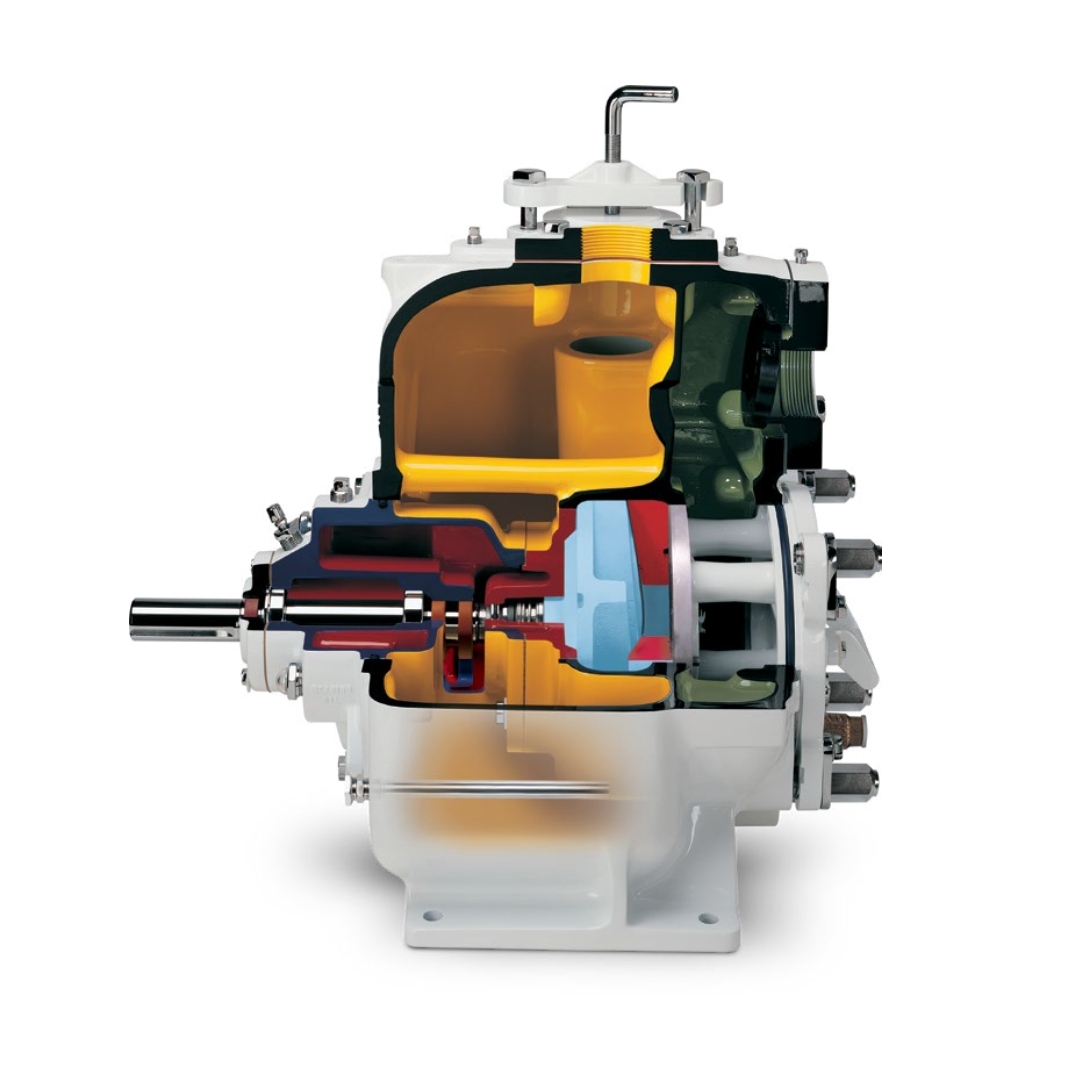

Super U-Series pumps

SELF-PRIMING CENTRIFUGAL PUMPS

Solids handling wastewater and slurry pumps

These pumps are among the most efficient self-priming, solids-handling pumps available. Their unique hydraulic design and smooth wall volute casing minimise friction loss and drag. The multi-vane, open impeller is designed for high efficiency operation yet can still handle limited solids.

The Super U Series pumps not only deliver high efficiencies (up to 75%), they also perform efficiently across a broad operating range. Varying demands that cause pumps to operate right or left of its best efficiency point will affect operating efficiency by only a small percentage. Useful features include external shimless adjustment, dual protection of bearings and an “easy grip” cover plate handle.

Gorman Rupp Super U-Series pump typical applications

Gorman Rupp Super U-Series pump benefits

Removable Rotating Assembly
The entire rotating assembly can be removed without disturbing the pump volute or pipework. Jacking screw holes are provided to assist with removal. This allows for quick and easy installation of a spare rotating assembly, resulting in less downtime.

Easily Removable Coverplate
The front cover can be removed by simply undoing two or four handles (depending on model). This allows easy access to the pump internals. Check valves, impellers, and wear plates can all be replaced via this cover, and any blockages can quickly be removed.

Multi Vane Solids Handling Impeller
Multi-vane, open impeller is designed for high efficiency. Constructed of ductile iron, the impeller will handle up to 1-1/4″ (31mm) diameter solids.

Dual Protection of Bearings
Atmospheric isolation of seal cavity provides positive protection of the bearings. This unique design also provides capabilities for external monitoring.

Exclusive Gorman-Rupp Mechanical Seal
Exclusive double-floating, self-aligning, oil lubricated mechanical cartridge seal with stationary and rotating face of silicon carbide or titanium carbide is specifically designed for abrasive and/or trash handling service. Other seal configurations are available, please contact the Sales Team at Hydromarque.

Performance Range

Dimensions

Sizes

3", 4", 6"

Max Capacity

95 l/sec

Max Head

63m

Max Solids

1.25″

Materials

Cast Iron, CD4MCu SST, Hard Iron Fitted

Self-priming centrifugal pump

Need a data Sheet?

Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the team for a data sheet on the Gorman Rupp Super U-Series pump.

Self-priming centrifugal pump

Parts list

Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the team for a parts list on the Gorman Rupp Super U-Series pump.

Self-priming centrifugal pump

Operations & Maintenance Manual

Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the team for a O&M Manual on the Gorman Super U-Series pump.
