Gorman Rupp

Gorman-Rupp Super T-Series Pumps

SELF-PRIMING CENTRIFUGAL PUMPS

The Ultimate in Solids-Handling Wastewater and Sludge Pumps

Gorman-Rupp’s Super T Series is the prestigious US manufacturer’s leading centrifugal pump range. Their robust construction combined with extremely reliable and simplistic operation makes them the first choice for many customers looking for a solution to handling solid-containing wastewater and sludge. Suitable applications range from pumping thick abrasive slurries/sludges on flooded suction to solid-laden wastewater, achieving suction lifts of up to 7.5m. When it comes to centrifugal pumps for industrial and sewage applications, the Super T-Series is in a class of its own.

Gorman rupp t series blow out

Gorman Rupp Super T-Series pump typical applications

FOOD

Fruit processing

FOOD

Vegetables processing

Gorman Rupp Super T-Series Pump Benefits

Economical Operation & Easy to Service

Super T Series Rotating Assy

Removable Rotating Assembly
The entire rotating assembly can be removed without disturbing the pump volute or pipework. Jacking screw holes are provided to assist with removal, allowing for quick and easy installation of a spare rotating assembly to decrease downtime.

Super T Series Cover Plate

Easily Removable Coverplate
The front cover can be removed by simply undoing two or four handles depending on the model, allowing for easy access to the pump internals. Check valves, impellers, and wear plates can all be replaced via this cover, and any blockages can quickly be removed.

Gorman Rupp Solids Handling Impeller

Solids Handling Impeller
Two-vane, ductile iron, semi-open solids handling impeller handles up to 3″ (76.2mm) diameter solids, depending on the pump model. Pump-out vanes on the impeller shroud reduce foreign material buildup behind the impeller and reduce pressure on the seal and bearings.

Gorman Rupp Cartridge Seal

Exclusive Gorman-Rupp Mechanical Seal
Exclusive double-floating, self-aligning, oil-lubricated mechanical cartridge seal with the stationary and rotating face of silicon carbide or titanium carbide is specifically designed for abrasive and/or trash handling service. Other seal configurations are available, please contact the Sales Team at Hydromarque.

Performance Range

T series operation curve

Dimensions

Sizes

2", 3", 4", 6", 8", 10"

Max Capacity

210 l/sec

Max Head

40m

Max Solids

3″

Suction Lifts

up to 7.5m

Materials

Cast Iron, Hard Iron, 316 SST and CD4MCu SST

W.I.M.E.S. spec

Compliant

Warranty

5 years manufacturer (Super T series)

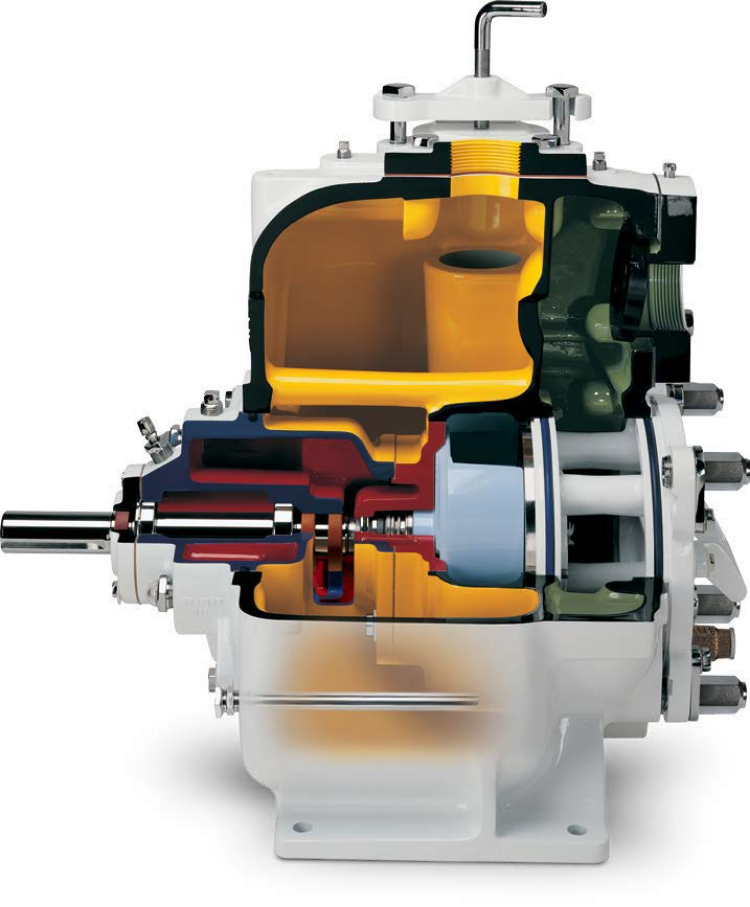

Super T Series2 cutout
Super T Product Lineup

Self-priming centrifugal pump

Need a Brochure?

For a brochure for the Gorman Rupp Super T Series Pump click on the link below to download. You can always get in touch and one of the team will be on hand to help.

Self-priming centrifugal pump

Data sheet or drawing

Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the team for a data sheet or drawing for the Gorman Rupp Super T Series Pump


Self-priming centrifugal pump

Parts list and O&M Manual

For a parts list or O&M Manual for the Gorman Rupp Super T Series Pump call Hydromarque on +44(0)1733 370545 or click the link below and one of the team will be on hand to help. If possible please provide pump model and serial number when you get in touch.

How it works

Patented Solids Handling Technology

No other companies offer such an effective product for managing clogging.

Ensure you have a Super T Series pump with Eradicator solids management system today
