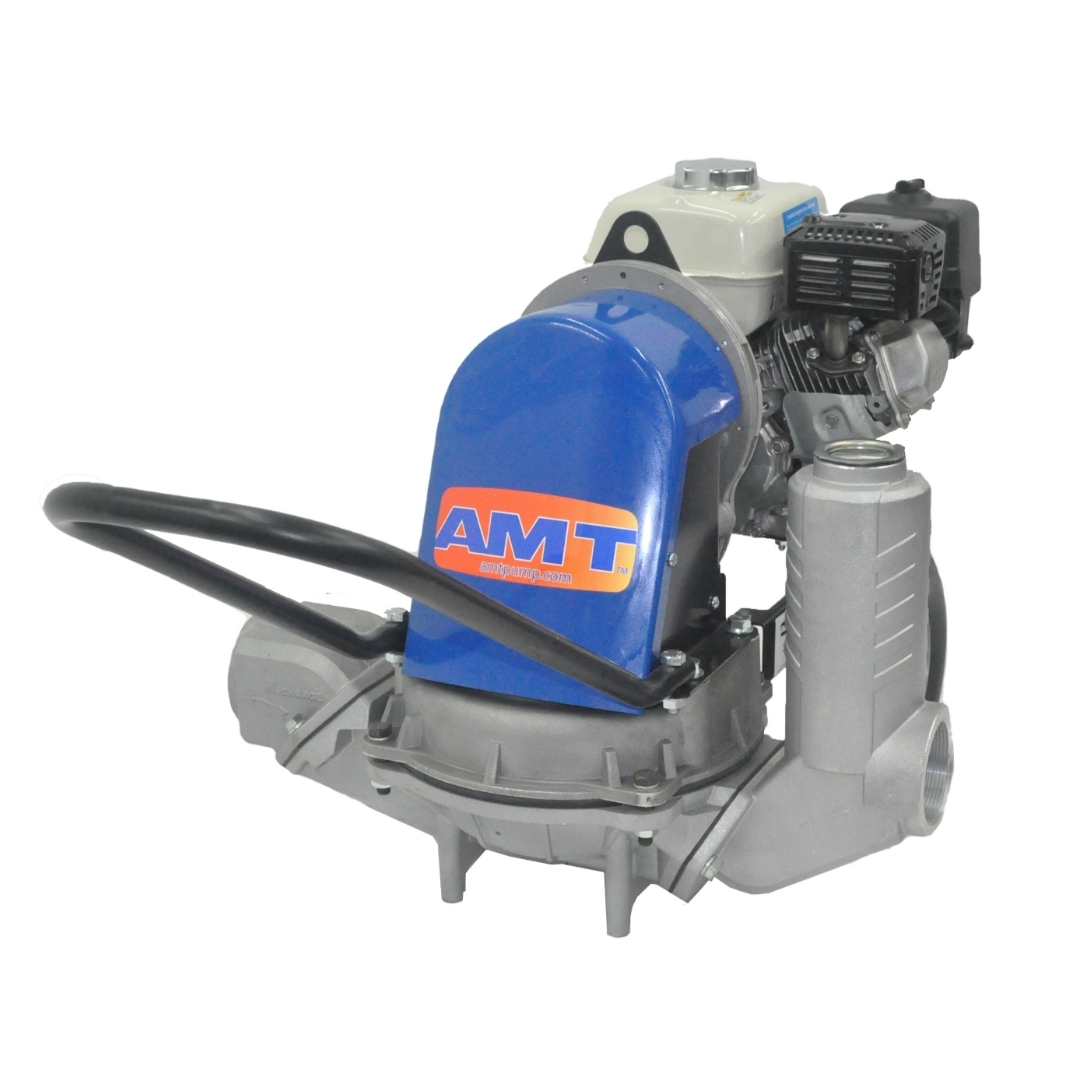

Built with cutting-edge technology and superior engineering, the Gorman Rupp AMT diaphragm pump boasts a rugged construction that can withstand the most demanding applications. With a maximum flow rate of up to 275 gallons per minute, this pump is perfect for pumping a wide range of liquids, including abrasive, viscous, and shear-sensitive fluids.
The Gorman Rupp AMT line of diaphragm pumps features a 2-stage heavy-duty forged gear-driven transmission. Often referred to as Mud or Sludge Pumps, diaphragm pumps are designed to pump mud, slurry, sewage and thick liquids that have the ability to flow.
Each unit includes a 2″ or 3″ NPT steel suction strainer, two NPT nipples and a wheel kit for portability. Gorman Rupp AMT diaphragm pumps are available with a choice of drivers to meet your application requirements: petrol, diesel or single or three-phase electric motor. Plus, its built-in check valve assures self-priming to 20 feet after the initial prime.
Each unit includes 2″ or 3″ NPT steel suction strainer, two NPT nipples and a wheel kit for portability. Gorman Rupp AMT Diaphragm pumps are available with a choice of drivers to meet your application requirements: petrol, diesel or single or three phase electric motor. Built-in check valve assures self-priming to 20 feet after initial prime.
Economical Operation
With capabilities such as self-priming to 25ft lift and a solids-handling capacity of up to 1-5/8" through its NPT Suction and Discharge Ports, this diaphragm pump is a cost-effective solution for transferring a wide range of fluids and slurries in various industrial applications.
Easy to Service
The modular component design of the AMT diaphragm pump permits easy maintenance and cleaning, while the sand-cast aluminium construction enhances its portability and durability.
Rotatable Base
All models of the AMT have a 90-degree rotatable base to make installation and maintenance easier in tight areas.
Sizes
2″, 3″
Max Capacity
2″ 7.5m3, 3″ 20 m3
Max Head
7,5 mlc
Max Solids
1 5/8″
Suction Lifts
up to 25ft
Materials
Sand Cast Aluminium Construction & Thermoplastic Santoprene Diahpragm
W.I.M.E.S. spec
Compliant
Warranty
5 years manufacturer
Diaphragm pump
Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the team for a data sheet on the Gorman Rupp AMT diaphragm pump.
Diaphragm pump
Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the team for a parts list on the Gorman Rupp AMT diaphragm pump.
Diaphragm pump
Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the team for a O&M Manual on the Gorman Rupp AMT diaphragm pump.
Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the sales team for a quote or any for any further assistance on your pump requirements.
