Hydro Transportation

HYDRO TRANSPORTATION PUMPS

Cornell’s specially designed food handling pumps are engineered to effectively move even the most delicate of food products with a minimum of damage or bruising.

The most common application in the UK is the handling of potato products (chips and crisps). However other products include cauliflower, carrots, peas, and french beans.

The pumps are so gentle with the product that in some countries they are used for transferring live fish!
Normal configuration is vee belt drive, this allows the large clearance impeller to be driven at low speeds and gives the flexilbility to fine tune optimum flow rates.

Cornell hydro transportation pump typical applications

Call Hydromarque on +44(0)1733 370545 or click the link below.

Cornell hydro transportation pump benefits

Ductile iron construction

Oversized, offset volute

Robust Mount Frame with mounting surfaces

No volute cutwater

Single vane impeller

Smooth contours

Reduced product damage

Low cost of repair

Threaded impeller

Food grade packing

No product contamination

Heavy “stressproof” steel shaft

Cycloseal® sealing system Available

Back-to-back double lip seals

Extended mechanical seal life

Oversized bearings with extended life

Replaceable shaft sleeve

Dynamically-balanced impeller

Stainless Steel option

Two-year warranty

Performance Range

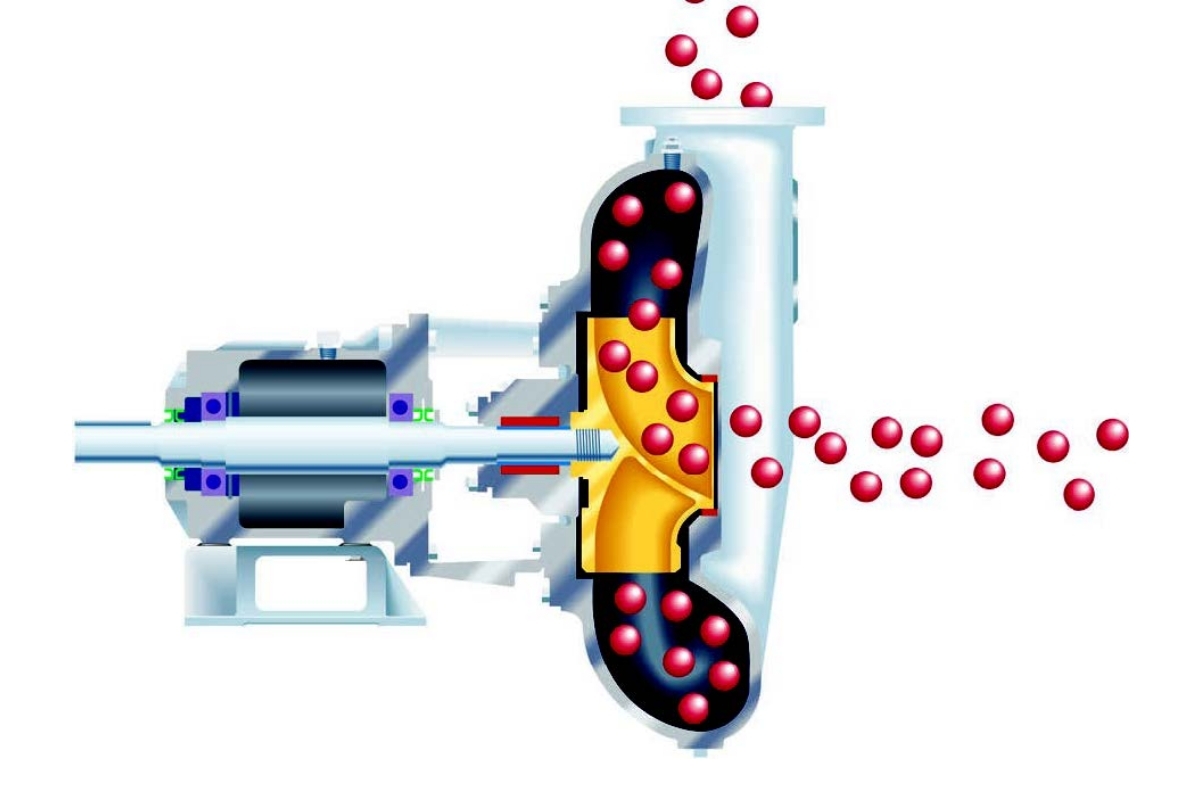

Dimensions

Sizes

3″ , 4″ , 6″ , 8″ , 10″ , 12″

Max Capacity

700 m3/hr

Max Head

20m

Max Solids

12″ x 7″

Materials

Cast Iron, Stainless Steel

Hydro Transportation pump

Need a data Sheet?

Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the team for a data sheet on the Cornell Hydro Transportation pump.

Hydro Transportation pump

Want a parts list?

Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the team for a parts list on the Cornell Hydro Transportation pump.

Hydro Transportation pump

Operations & Maintenance Manual

Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the team for a O&M Manual on the Cornell Hydro Transportation pump.

Request a quote today

Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the sales team for a quote or any for any further assistance on your pump requirements.
