Gorman-Rupp Ultra V-Series Pumps

SELF-PRIMING CENTRIFUGAL PUMPS

Solids-Handling Wastewater and Sludge Pumps that Transforms Industrial Systems

The Gorman-Rupp Ultra V-Series is the latest self-priming centrifugal pump added to the world-beating lineup. V-Series pumps combine high head performance with outstanding efficiency, priming and solids-handling capability. These are available as standard V-Series single-stage units or double-stage units that double the performance range, known as the VS-Series.

GR Pump

Gorman Rupp Ultra V-Series pump typical applications

Gorman Rupp Ultra V-Series pump benefits

Ultra v series three times pressure

3x More Pressure
Gorman-Rupp’s patented UltraMate® can be paired with the Ultra V-Series pump when system requirements exceed the Ultra V’s performance range. Adding the UltraMate unit directly to the Ultra V through an innovative transition chamber increases maximum pressure by up to three times that of traditional solids-handling, self-priming centrifugal pumps. Losses associated with conventional series connected pumps are also reduced, resulting in increased efficiencies.

Ultra v series smart scroll

Smart Scroll Discharge Locator
Gorman-Rupp’s patented Smart Scroll® can be rotated to fit your specific pipe system. It can be ordered in vertical or horizontal facing, left or right positions.

Ultra v series system benefits

Removable Rotating Assembly
The entire rotating assembly can be removed without disturbing the pump volute or pipework. Jacking screw holes are provided to assist with removal. This allows for quick and easy installation of a spare rotating assembly, resulting in less downtime.

Ultra v series removable cover plate

Easily Removable Coverplate
The front cover can be removed by simply undoing two or four handles (depending on the model), enabling easy access to the pump internals. Check valves, impellers, and wear plates can all be replaced via this cover, and any blockages can quickly be removed.

Gorman Rupp Solids Handling Impeller

Solids Handling Impeller
A two-vane, ductile iron, semi-open solids-handling impeller handles up to 3″ (76.2mm) diameter solids (depending on the model). Pump-out vanes on the impeller shroud reduce foreign material buildup behind the impeller and reduce pressure on the seal and bearings.

Gorman Rupp Cartridge Seal

Exclusive Gorman-Rupp Mechanical Seal
The V-Series uses an exclusive double-floating, self-aligning, oil-lubricated mechanical cartridge seal with a stationary and rotating face of silicon carbide or titanium carbide. It is specifically designed for abrasive and/or trash handling service. Other seal configurations are available by contacting Hydromarque.

Performance Range

Ultra v series performance
Ultra v series performance

Dimensions

Sizes

3", 4", 6"

Max Capacity

123 l/sec

Max Head

99m

Max Solids

3″

Materials

Cast Iron, Hard Iron Fitted

W.I.M.E.S. spec

Compliant

Warranty

5 years manufacturer

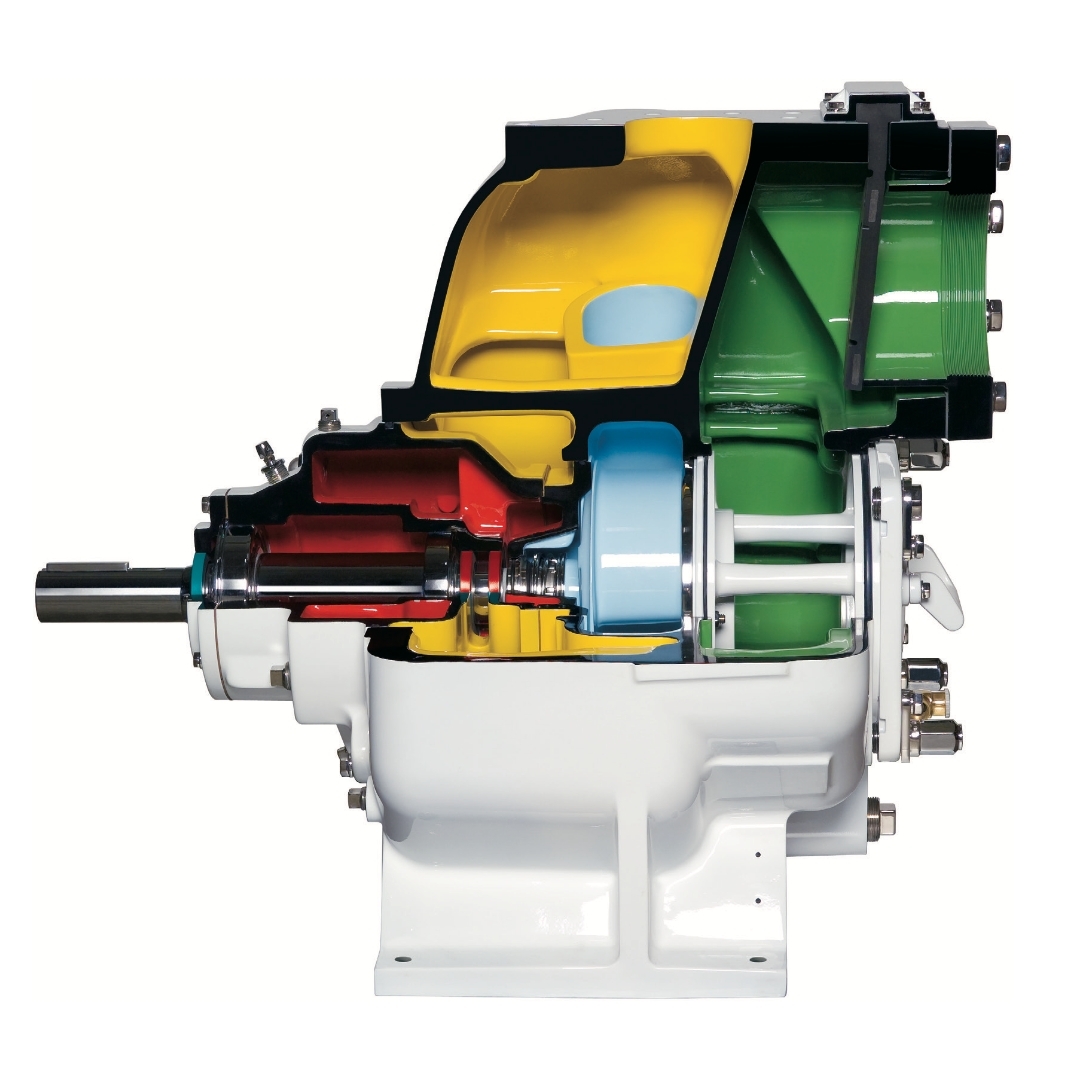

GR V series cutout

Self-priming centrifugal pump
