Gorman Rupp

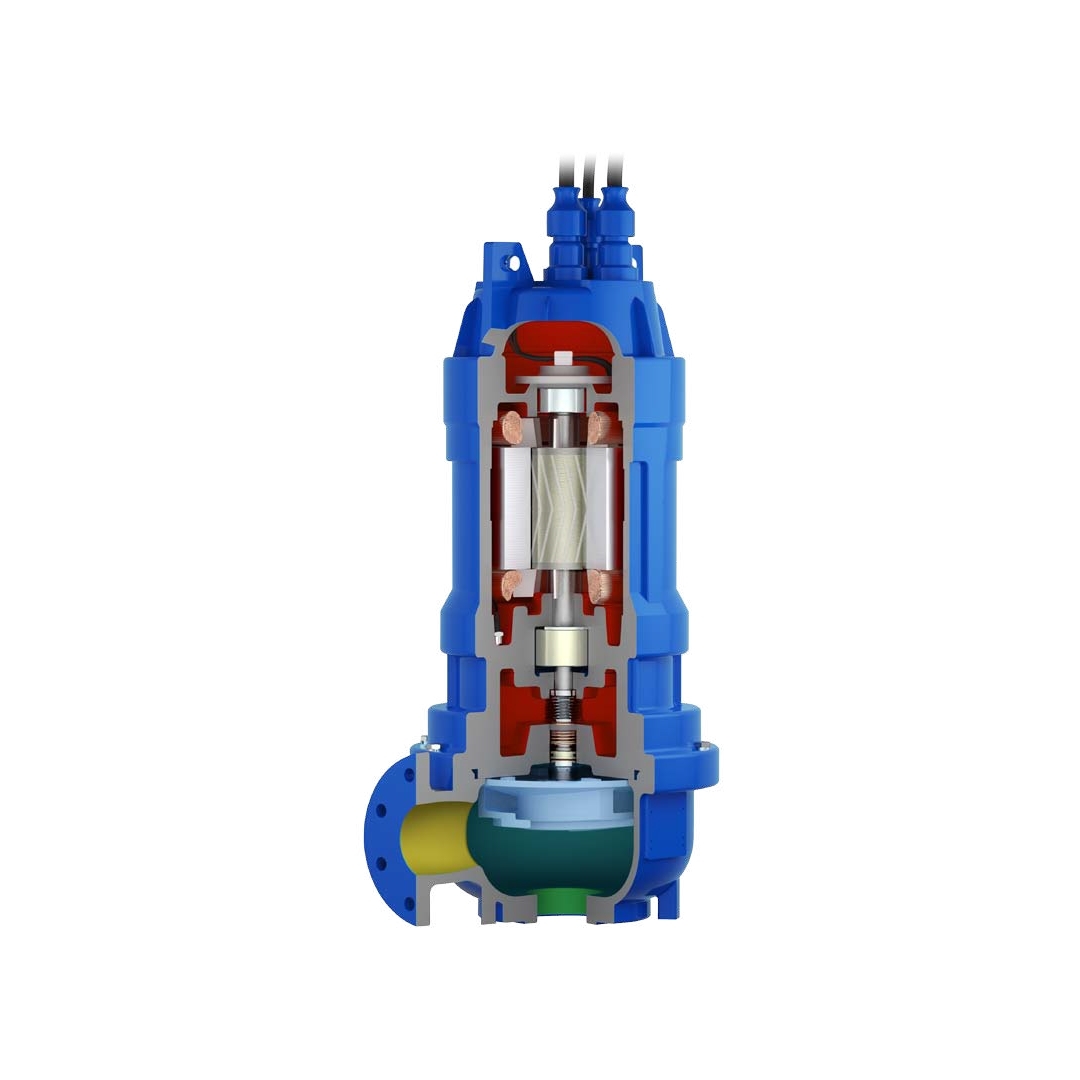

JW-Series Submersible pumps

SUBMERSIBLE AND DRY WELL SUBMERSIBLE

50 Hz Submersible Solids Handling Pumps

In April 2005 Gorman Rupp purchased the Wallwin range of submersible and dry well submersible pumps from Gilkes. These are now known as the Gorman Rupp JW Series. The pumps are designed to meet the specifications of water companies for sludge and sewage applications. Various types of impeller are available to best suit the application. These include channel, vortex and screw types.

Gorman Rupp JW Series pump typical applications

Sewage and sewage treatment

Call Hydromarque on +44(0)1733 370545 or click the link below.

Gorman Rupp JW Series pump benefits

Easy to work on
Modular Component Design Permits Easy Maintenance and Clean out.

Base Rotatable
90 degree Rotatable Base on All Models.

Long Life Bearings
Heavy duty angular contact bearings are pre-packed with grease and sealed for long, trouble-free life.

Efficient and Durable Impellers
Auxiliary back vanes are incorporated to exclude abrasive particles from seal face. Vortex Impellers give excellent solids handling capability, combined with minimum wear.

Performance Range

Dimensions

Sizes

80mm, 100mm, 125mm, 150mm, 200mm, 300mm

Max Capacity

350 l/sec

Max Head

60m

Max Solids

100mm

Materials

Cast Iron

W.I.M.E.S. spec

Compliant - Available in safe area or explosion proof (ATEX II GT3) versions

Submersible pumps

Need a data Sheet?

Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the team for a data sheet on the Gorman Rupp AMT diaphragm pump.

Submersible pumps

Want a parts list?

Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the team for a parts list on the Gorman Rupp AMT diaphragm pump.

Submersible pumps

Operations & Maintenance Manual

Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the team for a O&M Manual on the Gorman Rupp AMT diaphragm pump.

Request a quote today

Call Hydromarque on +44(0)1733 370545 or click the link below and contact one of the sales team for a quote or any for any further assistance on your pump requirements.

Get in touch

Can’t find what you are looking for?

Get in touch with one of our technical experts today who would be happy to assist you.
